Gray-Scott Model at F 0.0340, k 0.0650  

These images and movie demonstrate the behavior of the Gray-Scott reaction-diffusion system with σ=Du/Dv=2 and parameters F=0.0340, k=0.0650.

Solitons pulse a few times, lose symmetry, then begin cell division (generational period 2060 tu). Solitons then fill the space and gently form a hexagonal lattice, reaching full stability after about 100,000 tu.

The eastern limit for mitosis at F=0.0340 is about k=0.0652.

Categories: Pearson λ; Wolfram 2-a    (glossary of terms)

             increase F










decrease k

after 165 tu
after 825 tu

15 frames/sec.; each fr. is 55 iter. steps = 27.5 tu; 1800 fr. total (49,500 tu)










increase k

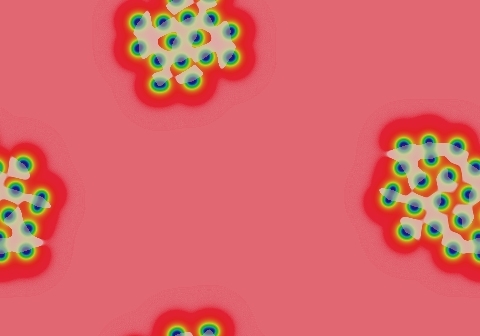

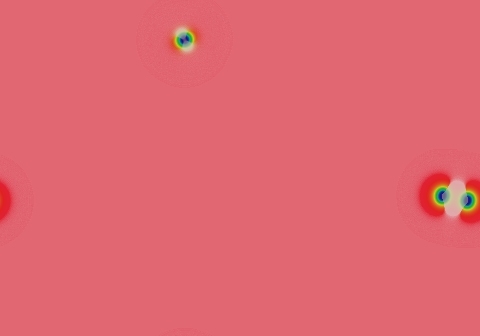

after 3,025 tu after 12,375 tu after 49,500 tu
             decrease F
(Click on any image to magnify)

In these images:

Wavefronts and other moving objects have decreasing u values (brighter color) on the leading edge of the blue part of the moving object, and increasing u (light pastel color) on the trailing edge. This is true even for very slow-moving objects — thus, you can tell from the coloring what direction things are moving in.

''tu'' is the dimensionless unit of time, and ''lu'' the dimensionless unit of length, implicit in the equations that define the reaction-diffusion model. The grids for these simulations use Δx=1/143 lu and Δt=1/2 tu; the system is 3.2 lu wide. The simulation meets itself at the edges (periodic boundary condition); all images tile seamlessly if used as wallpaper.
